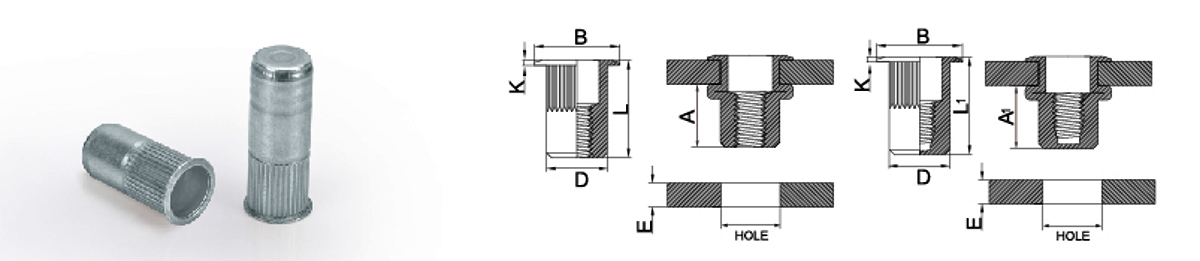

| UNIT:mm | R=Reducee/K=Kunrked/S=Steel/B=Blind | |||||||||
| Thread | Number P/N |
T(GRIP RANGE) MIN MAX |
A Ref |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B 土 0.30 |
K 土0.15 |
L 土 0.30 |
(CLOSE END) | |
| A1 | L1 | |||||||||
| M4 | AKS-04M-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 | 15.2 | 19.3 |
| M4 | AKS-04M-35 | 2.5-3.5 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | 14 | 19.3 |
| M5 | AKS-05M-30 | 0.5-3.0 | 7.2 | 7.6 | 7.4 | 8.7 | 0.5 | 12.5 | 20.7 | 25.7 |
| M5 | AKS-05M-55 | 3.5-5.5 | 6.2 | 7.6 | 7.4 | 8.7 | 0.5 | 15.4 | 16.7 | 25.7 |
| M6 | AKS-06M-30 | 0.7-3.0 | 9.2 | 10 | 9.8 | 11.5 | 0.6 | 15.3 | 24.7 | 30.8 |
| M6 | AKS-06M-60 | 3.5-6.0 | 8.2 | 10 | 9.8 | 11.5 | 0.6 | 17.8 | 21 | 30.8 |
| M8 | AKS-08M-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 | 28.5 | 36 |
| M8 | AKS-08M-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | 24.5 | 36 |
| M10 | AKS-10M-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 | 2&5 | 36 |
| M10 | AKS-10M-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | 24.5 | 36 |
| UNIT:mm | R=Reducee/K=Kunrked/S=Steel/B=Blind | |||||||||
| Thread | Number P/N |
T(GRIP RANGE) MIN MAX |
A Pef |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B 土 0.30 |
K 土0.15 |
L 土 0.30 |
(CLOSE END) | |
| A1 | L1 | |||||||||
| 6-32UNC | AKS-6-32-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 | 15.2 | 19.3 |
| 6-32UNC | AKS-6-32-35 | 2.5-3.5 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | 14 | 19.3 |
| 8-32UNC | AKS-8-32-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 | 15.2 | 19.3 |
| 8-32UNC | AKS-8-32-35 | 2.5-3.5 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | 14 | 19.3 |
| 10-24UNC | AKS-10-24-30 | 0.5-3.0 | 7.2 | 7.6 | 7.4 | 8.7 | 0.5 | 12.5 | 20.7 | 25.7 |
| 10-24UNC | AKS-10-24-55 | 3.5-S.5 | 6.2 | 7.6 | 7.4 | 8.7 | 0.5 | 15.4 | 16.7 | 25.7 |
| 10-32UNF | AKS-10-32-30 | 0.5-3.0 | 7.2 | 7.6 | 7.4 | 8.7 | 0.5 | 12.5 | 20.7 | 25.7 |
| 10-32UNF | AKS-10-32-55 | 3.5-5.5 | 6.2 | 7.6 | 7.4 | 8.7 | 0.5 | 15.4 | 16.7 | 25.7 |
| 1/4-20UNC | AKS-1/4-20-30 | 0.7-3.0 | 9.2 | 10 | 9.8 | 11.5 | 0.6 | 15.3 | 24.7 | 30.8 |
| 1/4-20UNC | AKS-1/4-20-60 | 3.5-6.0 | 8.2 | 10 | 9.8 | 11.5 | 0.6 | 17.8 | 21 | 30.8 |
| 5/16-18UNC | AKS-5/16-18-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 | 28.5 | 36 |
| 5/16-18UNC | AKS-5/16-18-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | 24.5 | 36 |
| 3/8-16UNC | AKS-3/8-16-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 | 28.5 | 36 |
| 3/8-16UNC | AKS-3/8-16-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | 24.5 | 36 |
