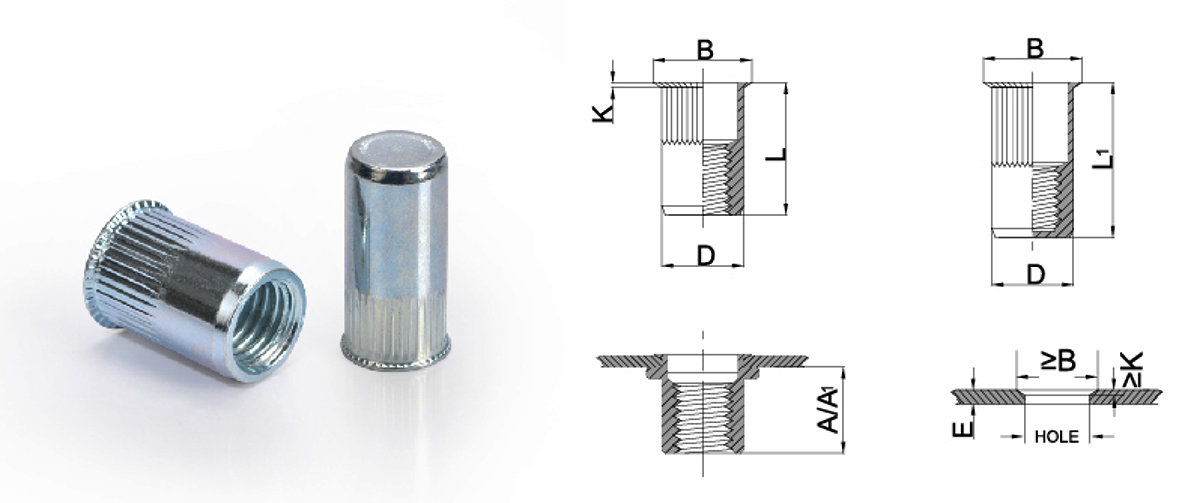

| UNIT:mm | R=Reducee/K=Kunrked/S=Steel/B=Blind | |||||||||
| Thread | Number P/N |
T(GRIP RANGE) MIN MAX |
A Ref |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B 土 0.30 |
K 土0.15 |
L 土 0.30 |
(CLOSE END) | |
| A1 | L1 | |||||||||
| M3 | RKS-03M-20 | 0.5-2.0 | 5.5 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 | ||
| M4 | RKS-04M-20 | 0.5-2.0 | 7.5 | 6.0 | 5.9 | 7.0 | 0.5 | 11.2 | 11.0 | 15.0 |
| RKS-04M-40 | 2.0-4.0 | 13.0 | 16.5 | |||||||
| M5 | RKS-05M-30 | 0.5-3.0 | 6.5 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 | 11.5 | 16.5 |
| RKS-05M-40 | 3.0-4.0 | 13.0 | 18.0 | |||||||
| M6 | RKS-06M-30 | 0.5-3.0 | 8.5 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 | 15.0 | 20.5 |
| RKS-06M-50 | 3.0-5.0 | 16.0 | 22.0 | |||||||
| M8 | RKS-08M-30 | 0.5-3.0 | 11.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 | 17.0 | 23.0 |
| RKS-08M-50 | 3.0-5.0 | 18.5 | 24.5 | |||||||
| M10 | RKS-10M-35 | 1.0-3.5 | 12.5 | 13.0 | 12.9 | 14.0 | 0.7 | 19.5 | 18.0 | 24.5 |
| RKS-10M-60 | 3.5-6.0 | 22.0 | 26.0 | |||||||
| RKS-10M-35(12H) | 1.0-3.5 | 12.0 | 11.9 | 13.0 | 0.7 | 19.5 | ||||
| M12 | RKS-12M-40 | 1.0-4.0 | 15.8 | 16.0 | 15.9 | 17.6 | 0.75 | 24.0 | ||
| All close end pants number add"B",AS:RKS-03M-20B | ||||||||||
