Thread Size |
Type |
Thread Coad |

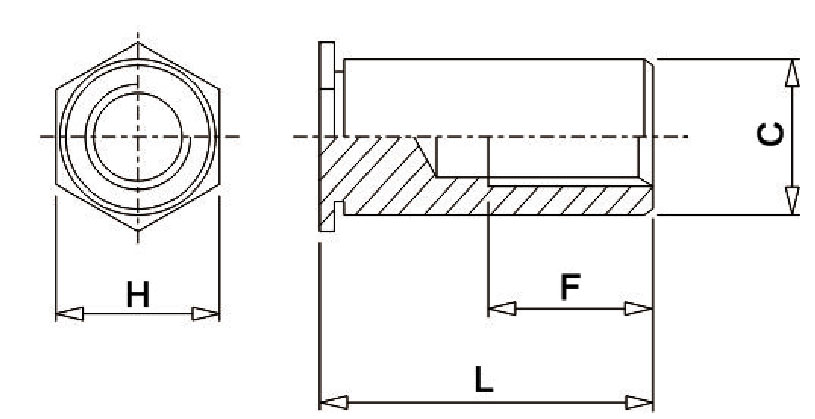

Length Code “ L ” +.002-0.005 Length Code in 32nds of an inch |
Min Sheet Thickness |
Hole Size In Sheet +.003 -.000 |
C -.005 |
H Mom |
Min.Dist Hole C/L To Edge |
|||||
|
Steel |
Stainless Steel |
Aluminum |
||||||||||||
|
UN-F-ED(英制) |
.112-40 (#4-40) |
KBSO |
KBSOS |
KBSOA |
440 |
10 12 |
14 |
16 18 20 |
22 24 26 28 30 32 34 |
.040 |
.166 |
.165 |
.187 |
.23 |
|
6440 |
.040 |
.213 |
.212 |
.250 |
.27 |
|||||||||
|
.138-32 (#6-32) |
KBSO |
KBSOS |
KBSOA |
632 |
.040 |
.213 |
.212 |
.250 |
.27 |
|||||
|
8632 |
.050 |
.281 |
.280 |
.312 |
.31 |
|||||||||
|
.164-32 (#8-32) |
KBSO |
KBSOS |
KBSOA |
832 |
.050 |
.281 |
.280 |
.312 |
.31 |
|||||
|
.190-32 (#10-32) |
032 |
.050 |
.281 |
.280 |
.312 |
.31 |
||||||||
|
D Dimension 土.010 |
.156 |
.187 |
.250 |
.375 |
||||||||||
|
|
Thread Size |
Type |
Thread Coad |
Length Code “ L ” +.002-0.005 Length Code in 32nds of an inch |
Min Sheet Thickness |
Hole Size In Sheet +.003 -.000 |
C -0.13 |
H Nom |
Min.Dist Hole C/L To Edge |
||||||
|
Steel |
Stainless Steel |
Aluminum |
|||||||||||||
|
METR-C(公制) |
M3*0.5 |
KBSO |
KBSOS |
KBSOA |
M3 |
6 |
8 10 |
11 |
14 16 |
18 20 22 25 32 |
1 |
4.2 |
4.19 |
4.19 |
6 |
|
3.5M3 |
1 |
5.4 |
5.38 |
5.38 |
6.8 |
||||||||||
|
M3.5*0.6 |
KBSO |
KBSOS |
KBSOA |
M3.5 |
1 |
5.4 |
5.38 |
5.38 |
6.8 |
||||||
|
M4*0.7 |
M4 |
13 |
7.2 |
7.1 |
7.9 |
8 |
|||||||||
|
M5&0.8 |
M5 |
13 |
7.2 |
7.1 |
7.9 |
8 |
|||||||||
|
D Dimension ±.010 |
3.2 |
4 |
5 |
6.5 |
9.5 |
||||||||||
